Kubernetes Components

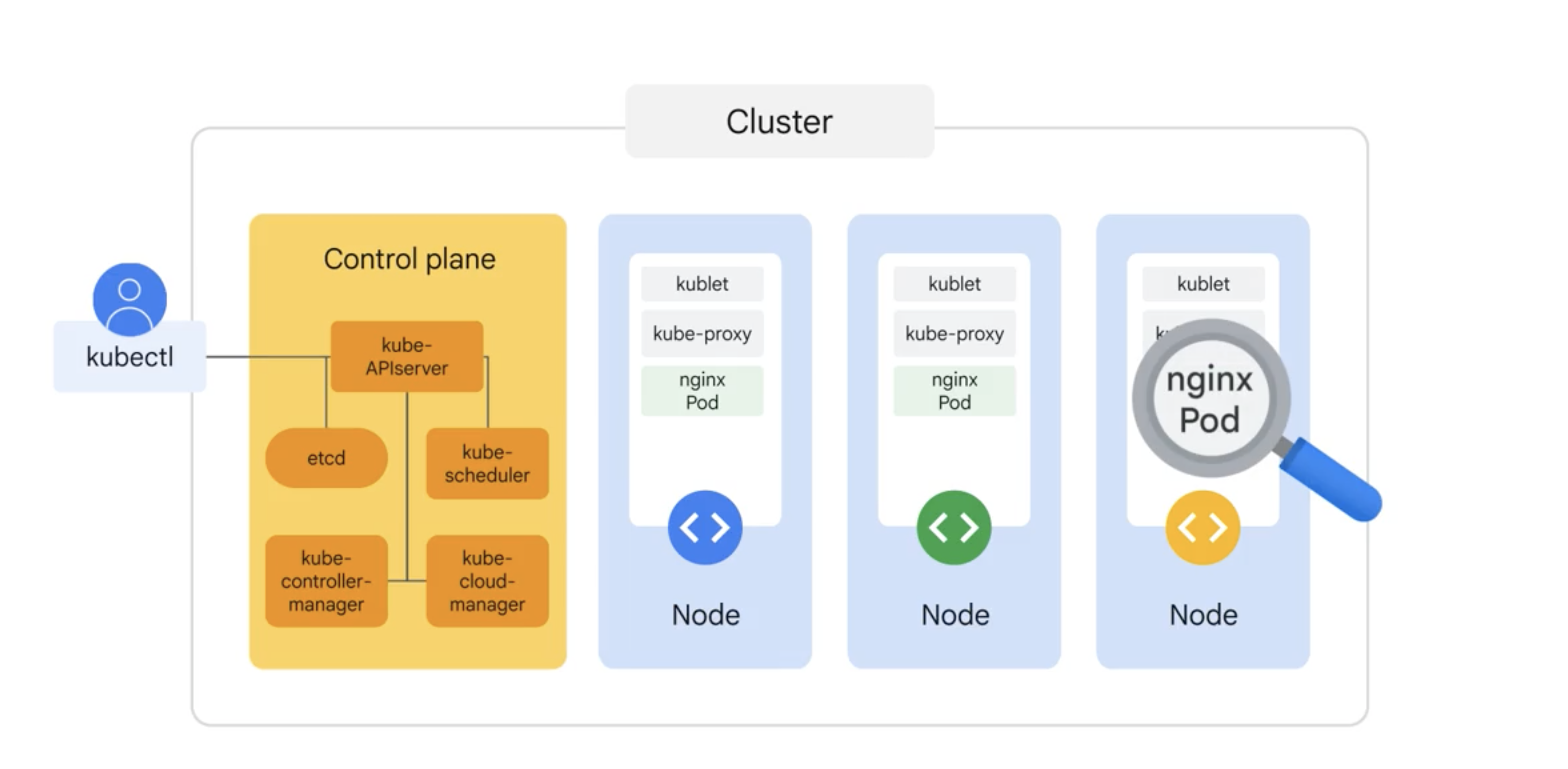

The architecture of Kubernetes is divided into two main parts:

1. Control Plane Components

The Control Plane is the brain of Kubernetes — responsible for managing the overall state of the cluster and orchestrating all activities.

1.1 kube-apiserver

• Acts as the central communication gateway of the system.
• All requests from kubectl, the Dashboard, CI/CD pipelines, etc., are sent through this component.
• Responsible for:
  • Authentication
  • Authorization
  • Reading/writing data from/to etcd
  • Forwarding requests to other components

Example:
You run kubectl get pods → the request goes to the kube-apiserver.

1.2 etcd

• etcd is the key-value store used by Kubernetes to persist cluster state.
• It stores:
  • Pod names, namespaces
  • Replica counts
  • ConfigMaps, Secrets, etc.
• If etcd loses data → the entire cluster can malfunction.

It’s important to back it up regularly.

1.3 kube-scheduler

• When a new Pod is created (but not yet assigned to a node), the scheduler will:
  • Check the available resources across all nodes
  • Evaluate constraints (affinity, taints, zones, etc.)
  • Decide the best node to place the pod on

Note: the scheduler only makes the placement decision — it doesn’t create the pod itself.

1.4 kube-controller-manager

• Runs various built-in controllers to manage cluster state, such as:
  • ReplicationController: ensures the correct number of pod replicas
  • NodeController: monitors node status (up/down)
  • JobController: handles one-time jobs
  • ServiceAccountController, and more

Example:
If you declare 3 pods and one crashes → the controller automatically recreates it.

• It acts as a gatekeeper that ensures the actual cluster state matches the YAML you applied.

1.5 cloud-controller-manager (optional)

• Separates cloud provider logic from the Kubernetes core.
• Common functions:
  • Creating external Load Balancers (e.g., GCP, AWS ELB)
  • Automatically attaching cloud volumes (e.g., EBS, PersistentDisk)
  • Updating node IPs in Services

GKE, EKS, and AKS all utilize this component under the hood.

2. Node Components

Node components run on every node in the cluster (both master and worker nodes) to ensure:

• Pods are running correctly
• Containers are managed properly
• Networking functions as expected

2.1 kubelet

• The main agent running on each node.
• It receives instructions from the kube-apiserver and performs actions such as:
  • Creating pods
  • Monitoring container health and status
  • Reporting pod status back to the Control Plane
• Ensures that the actual state of the pod matches the desired state defined in YAML.

If a pod crashes, the kubelet will attempt to restart it (if allowed by the restart policy).

2.2 kube-proxy

• Manages networking rules using iptables or IPVS.
• Handles internal load balancing and forwards traffic to the appropriate pods.
• Ensures that:
  • Pods can communicate with each other
  • Pods can access external networks if required

Example:
When you access a ClusterIP service, kube-proxy routes the request to one of the underlying pods.

2.3 Container Runtime

• The runtime engine responsible for running containers.
• It performs tasks such as:
  • Pulling images (e.g., from Docker Hub, GCR)
  • Creating containers from those images
  • Managing container lifecycle (start, stop, restart)

Common container runtimes:
